WDS 76 MD

A new technological flagship

  • 76 Mounting width, mm
  • 48 Glazing unit, mm
  • 6 Chambers
  • 3 Gasket contours
01

Maximum energy efficiency

Maximum soundproofing

Maximum air and water tightness

Maximum security and reliability

02

* as compared to other WDS systems’ performance

WHAT MAKES WDS 76
THE UKRAINIAN MARKET’S
LEADING WINDOWS

The Ukrainian window industry adopts the European market’s achievements, gradually introducing European standards to offer products with better balanced and optimized properties to consumers.

“The more, the better” doesn’t work anymore. The time has come for smart solutions.

03

WDS 76 MD WINDOW TEST RESULTS

Thermal transmittance
Uw = up to 0.79 W/m²K

Air permeability
up to Class 4
Water tightness
up to Class E900
Resistance to wind load
up to Class C5
Soundproofing
Rw = 38 dB
04
1

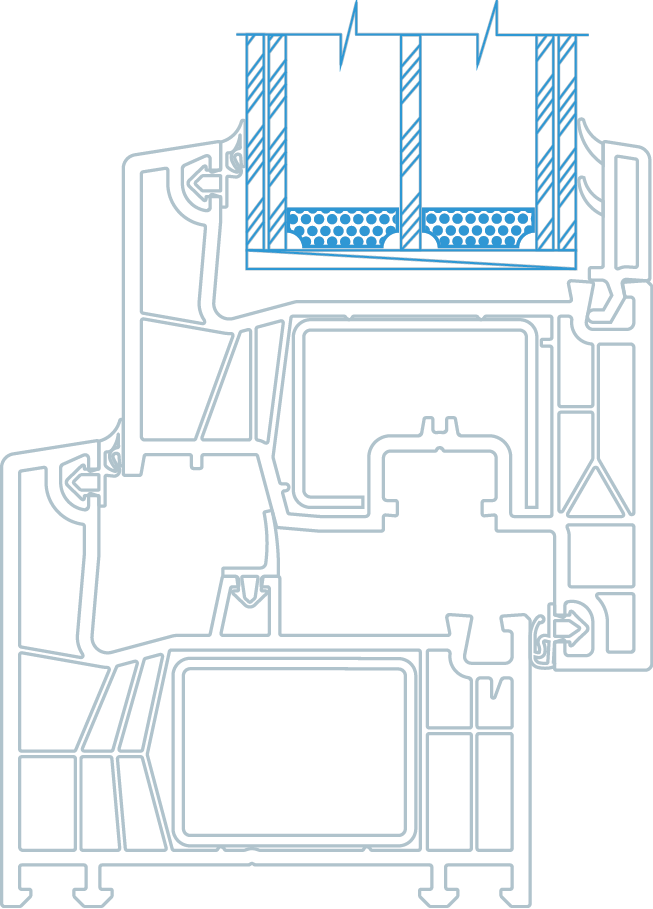

A multipurpose 48 mm glazing unit with optional
architectural or Triplex glass

2

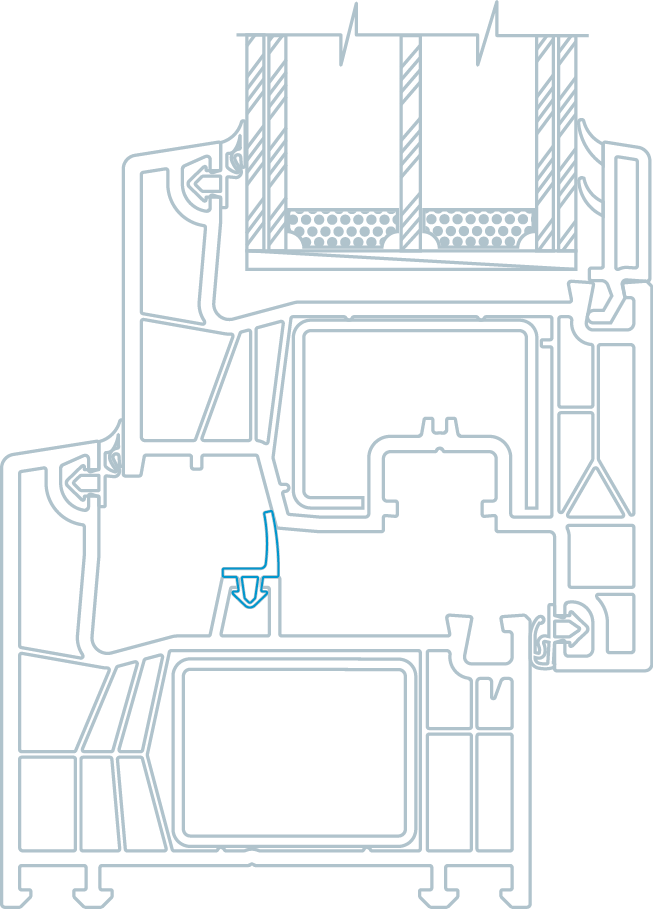

Enhanced air tightness and protection from dust and dirt with a built-in third gasket contour

3

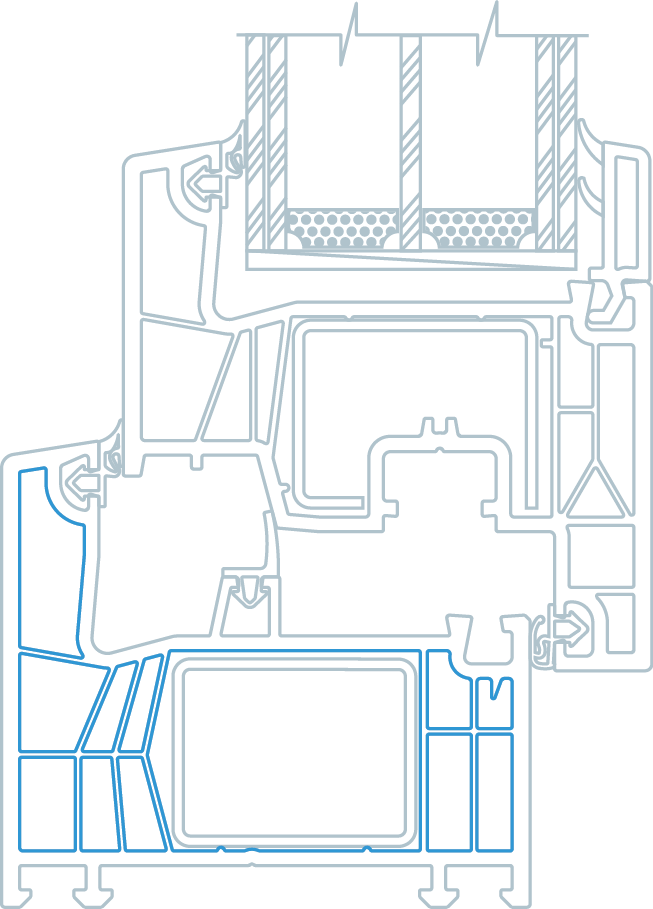

Excellent heat insulation with frame and sash having 6 air chambers each

05

ENERGY EFFICIENCY

The Ukrainian construction standards are being harmonized with the EU ones. The heat transfer resistance coefficient requirements have become more stringent in Ukraine, coming close to the European level. The best-selling items from our product range currently meet minimally acceptable standards. If the requirements keep rising, the current 70-mm systems won’t be able to keep up with demand.

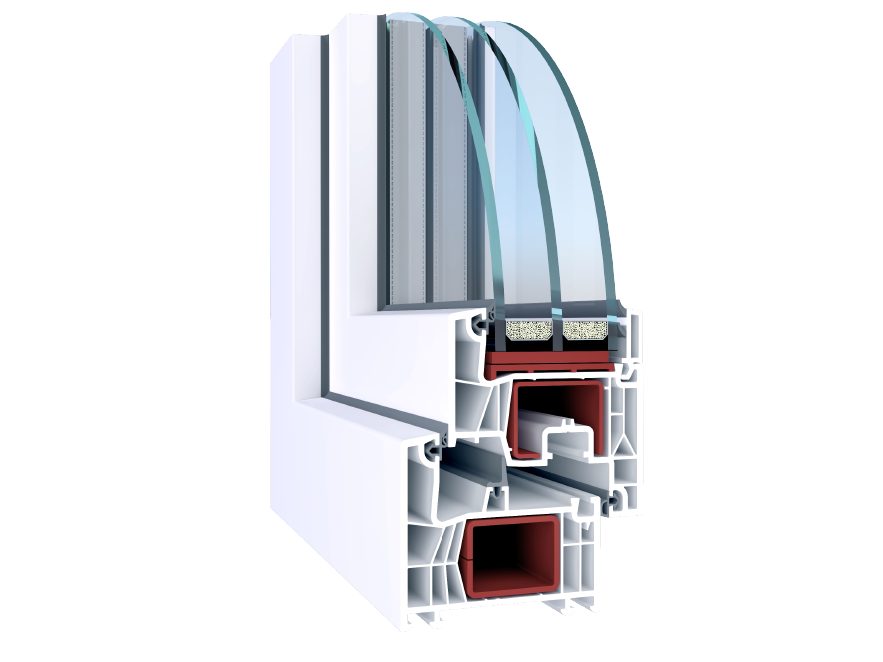

WDS 76 MD is the most technologically advanced system in our range.

With a mounting depth of 76 mm, multipurpose 48-mm glazing unit, third gasket contour, and 6-chamber profiles, WDS 76  MD windows’ thermal transmittance reaches 0.79 W/m²K, 28% above the 70-mm systems’ average.

06

LARGE WINDOWS AND DOORS

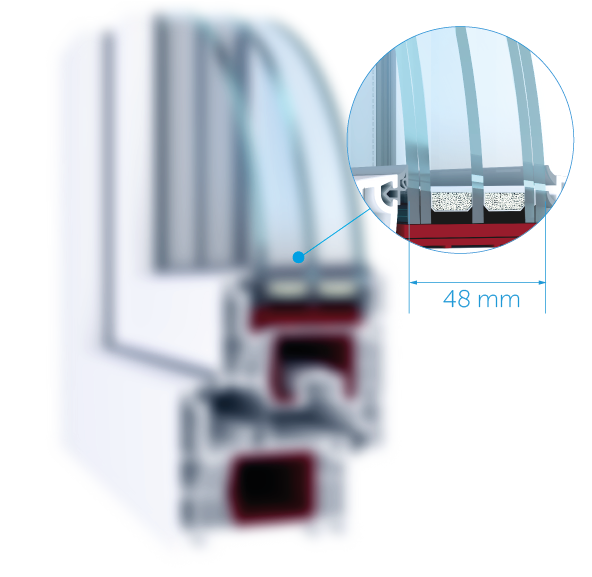

Panoramic windows must have safe inner and external glass panes (tempered or triplex). This kind of glass is typically thicker than usual.
The WDS 76 MD windows have wide 48-mm glazing units with thick glass without sacrificing thermal efficiency.
To put this into perspective, using the glass this thick in 40-mm glazing units (the maximum for profiles with a mounting depth of 70 mm) will reduce pane spacing, substantially lowering heat insulation performance. Therefore, the WDS 76 MD profiles and 48-mm glazing units make an optimal combination for large assemblies.

Besides, WDS 76 MD profiles have larger reinforcement chambers than other WDS systems to accommodate reinforcements with better static properties, enabling larger assemblies without unnecessary partitions.

07

SOUNDPROOFING,
SECURITY, AESTHETICS

The WDS 76 systems are compatible with 48-mm glazing units to provide:

  • • aesthetic appearance, as architectural glass prevents the lens effect
  • • security with optional tempered or Triplex glass (6–8 mm) on one or both sides
  • • excellent soundproofing with optional Triplex glass (6–8 mm) on one or both sides
  • • desired heat insulation performance with larger inert gas chambers.
08

MORE NATURAL LIGHT

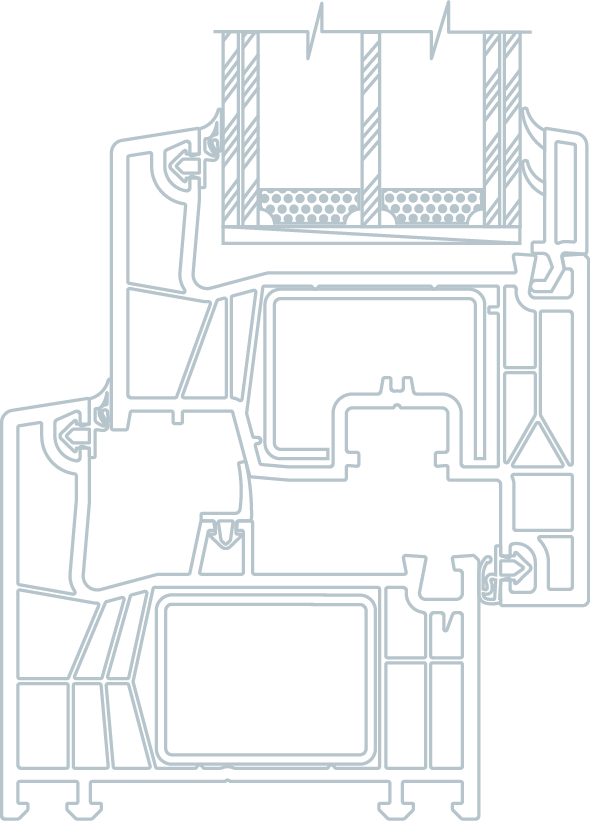

WDS 76 MD windows have a smaller combined frame and sash profile height than any other WDS system. They let more natural light in since the glazing unit accounts for most of the assembly’s area.

09

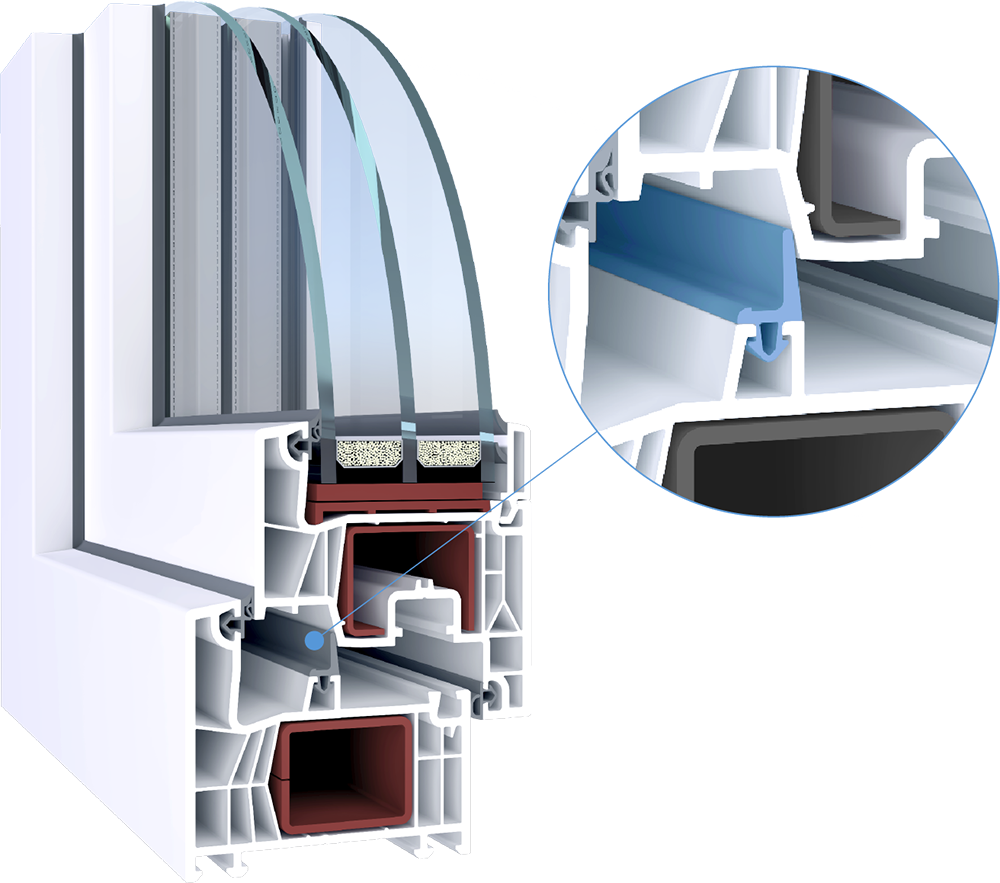

THIRD
GASKET
CONTOUR

The third gasket contour provides:

  • • enhanced air permeability
  • • increased water tightness
  • • a barrier for extra protection for hardware from moisture, dust, and dirt (rebate zone protection from dirt)
  • • higher security
10

STYLISH LOOK

Rectangular windows and doors have become a trend in today’s construction and architecture. With WDS Color lamination, they look especially stylish and modern.

11
22 lamination
colors More
colors

F470-3003

Sheffield Oak concrete

F470-3002

Sheffield Oak alpine

F436-6066

Grey matte

F436-6065

Umbra matte

F470-3001

Turner Oak

F470-3004

Turner Oak toffee

F436-7048

Basalt

F436-1012

Anthracite

More
colors

Sheffield Oak concrete

F470-3003

12

HARMONY IN DETAILS

The WDS Color windows look perfect with double-sided lamination. With a dyed profile and gasket color to match, your windows have a coherent style, whether open or closed.

1

Turner oak toffee
lamination

2

Brown
profile

3

Black
gaskets

1

Anthracite
lamination

2

Grey profile

3

Black gaskets

1

Sheffield Oak
lamination

2

White
profile

3

Grey
gaskets

13
14

Downloads

Logo Corners Technical catalog Technical poster
15

RECOMMENDED
WINDOW CONFIGURATION

PROFILEWDS 76 MD
GLAZING UNITMultipurpose 48-mm argon-filled glazing unit with
inner and external Triplex panes with an energy-saving coating (6i-16Аr-4-16Аr-6i)
HARDWAREBurglarproof
REINFORCEMENTSquare reinforcement in frame
COLORAny from the WDS Color palette
