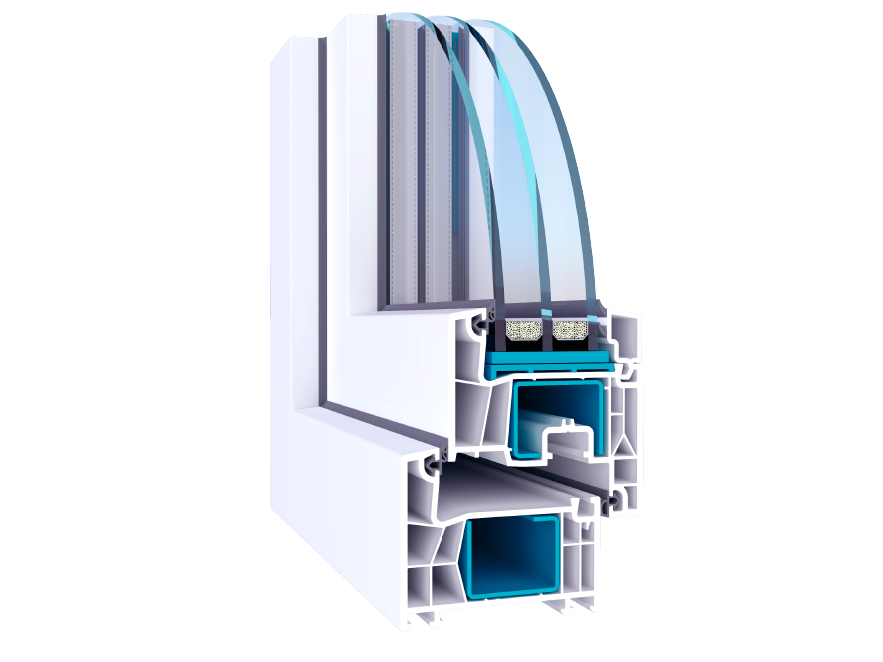

WDS 76 AD

A new window standard

  • 76 Mounting width, mm
  • 40 Glazing unit, mm
  • 5 Chambers
01

Reliable heat insulation

Solid soundproofing

More light

Large-area glazing

02

WHAT MAKES WDS 76
THE UKRAINIAN MARKET’S
LEADING WINDOWS

The Ukrainian window industry adopts the European market’s achievements, gradually introducing European standards to offer products with better balanced and optimized properties to consumers.

“The more, the better” doesn’t work anymore. The time has come for smart solutions.

03

WDS 76 AD WINDOW TEST RESULTS

Thermal transmittance
Uw = up to 0.79 W/m²K

Air permeability
up to Class 4

Water tightness
up to Class E1050

Resistance to wind load
up to Class C5

Soundproofing
Rw = 38 dB

04
1

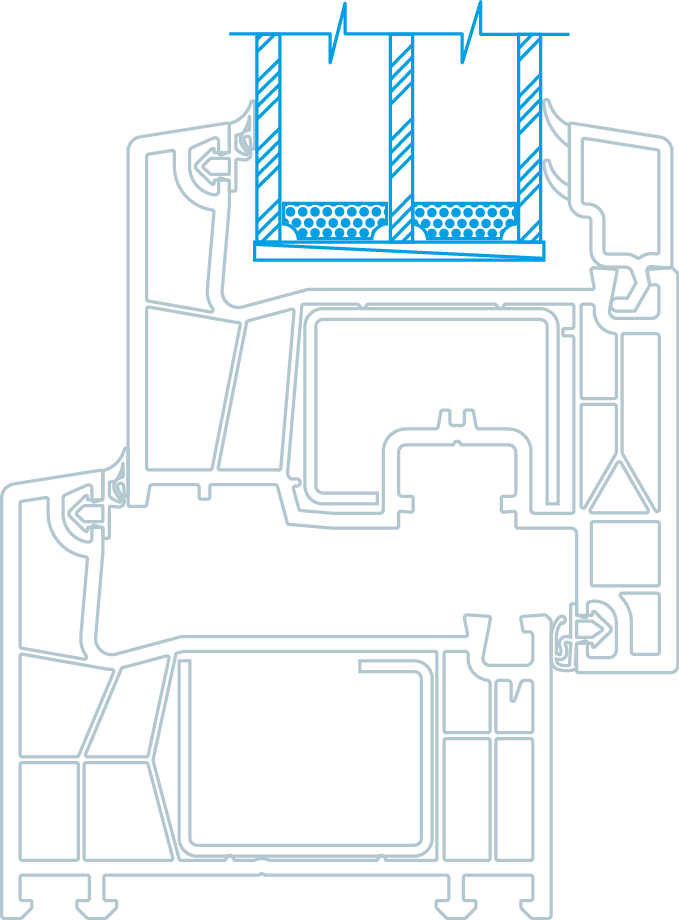

A 40-mm energy-efficient glazing unit for reliable heat insulation (48-mm glazing unit available as an option).

2

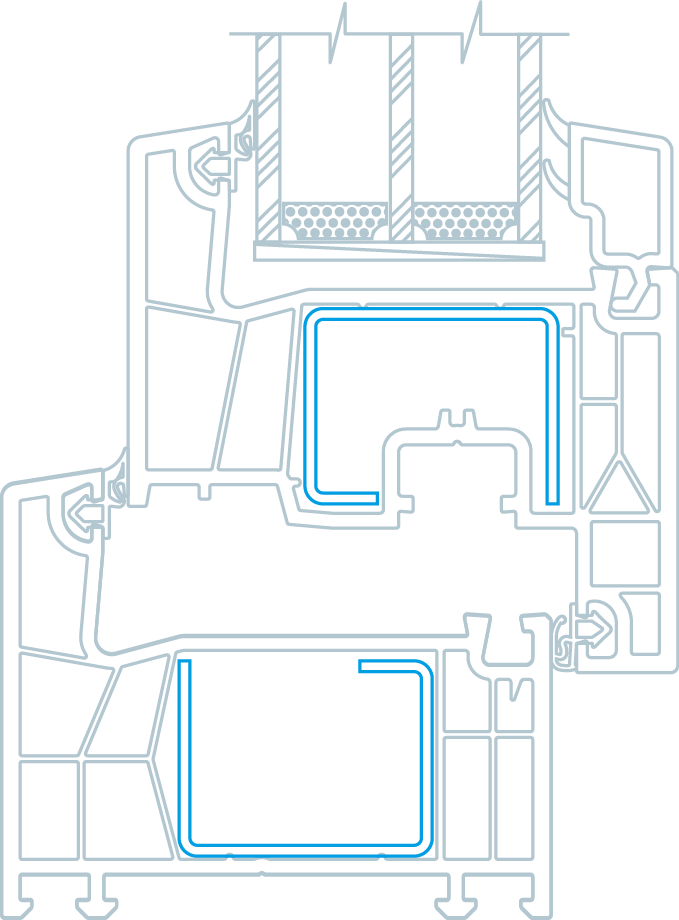

Durable reinforcement for large assemblies

3

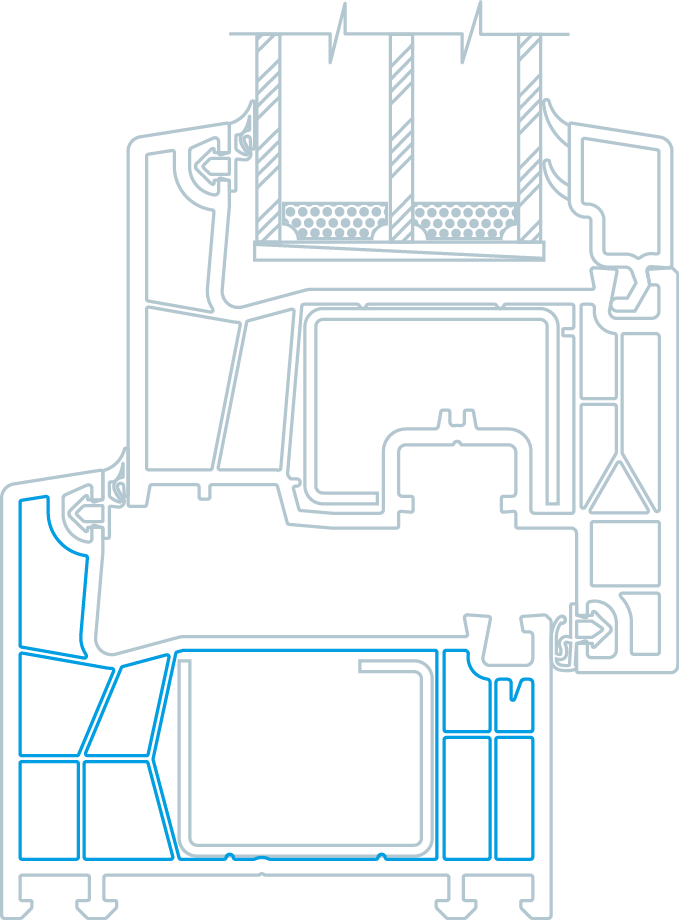

5 air chambers within the frame and the sash for excellent heat insulation.

05

ENERGY EFFICIENCY

The Ukrainian construction standards are being harmonized with the EU ones. The heat transfer resistance coefficient requirements have become more stringent in Ukraine, coming close to the European level. The best-selling items from our product range currently meet minimally acceptable standards. If the requirements keep rising, the current 70-mm systems won’t be able to keep up with demand.

The WDS 76 AD windows’ thermal transmittance reaches 0.82 W/m²K, which is 20% above the 70-mm systems’ average.

06

LARGE WINDOWS AND DOORS

The WDS 76 AD profiles have larger reinforcement chambers, enabling the installation of a more rigid metal reinforcement to enhance the assembly’s static performance and thus eliminate unnecessary partitions.

07

SOUNDPROOFING
AND SECURITY

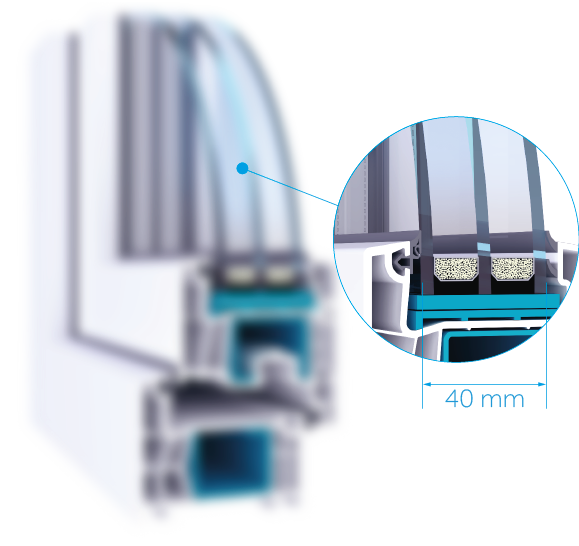

The WDS 76 AD system windows come with energy-efficient 40-mm glazing units providing:

  • • adequate heat insulation
  • • solid soundproofing with optional Triplex glass (6–8 mm)
  • • security with tempered or Triplex glass (6–8 mm)
08

MORE NATURAL LIGHT

WDS 76 АD windows have a smaller combined frame and sash profile height than any other WDS system. They let more natural light in since the glazing unit accounts for most of the assembly’s area.

09
22lamination
colors More
colors

F470-3003

Sheffield Oak concrete

F470-3002

Sheffield Oak alpine

F436-6066

Grey matte

F436-6065

Umbra matte

F470-3001

Turner Oak

F470-3004

Turner Oak toffee

F436-7048

Basalt

F436-1012

Anthracite

More
colors

Sheffield Oak concrete

F470-3003

10

HARMONY
IN DETAILS

The WDS Color windows look perfect with double-sided lamination. With a dyed profile and gasket color to match, your windows have a coherent style, whether open or closed.

1

Turner oak toffee
lamination

2

Brown
profile

3

Black
gaskets

1

Anthracite
lamination

2

Grey profile

3

Black gaskets

1

Sheffield Oak
lamination

2

White
profile

3

Grey
gaskets

11
12

Downloads

Logo Corners Technical catalog Technical poster
13

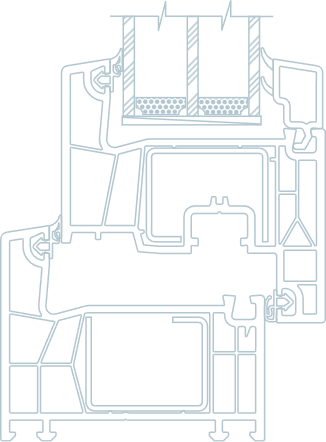

RECOMMENDED WINDOW CONFIGURATION

PROFILEWDS 76 AD
GLAZING UNITA 40 mm
argon-filled triple-pane glazing unit with
an energy-saving coating on the inner and
external panes (4і-14Ar-4-14Ar-4i)
HARDWAREBurglarproof
COLORAny from the WDS Color palette
14
